'65 Bassman: another Plexi

Discussion in 'Axe-Fx II Discussion' started by yek, Sep 5, 2013.

  1. Mark's Tone

    Mark's Tone
    Expand Collapse
    Forum Addict

    Joined:
    Oct 30, 2012
    Messages:
    1,348
    Likes Received:
    813
    The best tones I ever got out of my vintage Marshall was the last two hours before the groove tubes crapped out. Sweet flutie tones. Get that into code, and we are mnoving foreward huge.

    Maybe it's already in there?

  2. Mark's Tone

    Mark's Tone
    Expand Collapse
    Forum Addict

    Joined:
    Oct 30, 2012
    Messages:
    1,348
    Likes Received:
    813
    I have been moving factory preset #1 to the back of the line since I got the axfx. :shock

  3. PacoCasanovas

    PacoCasanovas
    Expand Collapse
    Fractal Fanatic

    Joined:
    Jun 22, 2009
    Messages:
    2,487
    Likes Received:
    2,788
    tweak "triode hardness" ;)

    pima1234 and Scott Peterson like this.
  4. javajunkie

    javajunkie
    Expand Collapse
    Moderator
    Moderator

    Joined:
    Jul 30, 2008
    Messages:
    12,342
    Likes Received:
    3,402
    Location:
    Denver, Colorado
    Doesn't 1965 AB165 circuit uses a 12ax7?

    Bassman « fenderguru.com. Fender amps, mods, modifications, vintage, maintenance, tubes, speakers, schematics, blackface, silverface, jens mosbergvik.


  5. FractalAudio

    FractalAudio
    Expand Collapse
    Administrator
    Fractal Audio Systems Moderator

    Joined:
    Jul 29, 2008
    Messages:
    12,937
    Likes Received:
    85,456
    Yes, the AB165 uses 7025 preamp tubes (which are relabeled 12AX7). The phase inverter, however, is a 12AT7.

    None of this is relevant though. The secret to the AB165 is the summing stage. It uses a inverting summing amp to sum the Normal and Bass inputs. This stage clips, because of all the local negative feedback, quite hard.

    pima1234, reclavea, Smilzo and 3 others like this.
  6. jyflorida

    jyflorida
    Expand Collapse
    Veteran

    Joined:
    Aug 12, 2012
    Messages:
    880
    Likes Received:
    466
    Location:
    Central Florida
    I've been waiting all day to try this. WOW! Simply killer tone!! I definitely WILL find a reason to use this patch over the weekend! Thank you Yek!

  7. #27 LVC, Sep 5, 2013
    Last edited: Sep 5, 2013
    LVC

    LVC
    Expand Collapse
    Fractal Fanatic

    Joined:
    Sep 20, 2009
    Messages:
    2,315
    Likes Received:
    1,370
    Location:
    Lafayette, NJ
    Right it has the 12AX7 but I was taking specifically about the Bassman 5F6-A circuit which is what Marshall lifted from Fender.

    He then swapped a 12AY7 for a 12Ax7 in the Bassman 5F6-A Circuit for more gain and that amp essentially became the JTM45

    To put the tube changes in perspective here are Preamp tube gain factors

    12AX7 - gain of 100
    12AT7 - gain of 60
    2AY7 - gain of 45
    12AU7 - gain of 19


    Remember the old game -- "6 degrees of Kevin Bacon".... same thing with Fender ... "6 degrees of Fender"

    All things lead back to Fender! .... *


    *and yes the tube book

    pima1234 likes this.
  8. javajunkie

    javajunkie
    Expand Collapse
    Moderator
    Moderator

    Joined:
    Jul 30, 2008
    Messages:
    12,342
    Likes Received:
    3,402
    Location:
    Denver, Colorado
    I was speaking to this:



    "To get it authentic in the Axe -- the Bassman sims would need to be modeled with a 12ax7 tube which actually would be cool for some of the other tweed amps as well (alternative tube modeling to give you different inherent headroom and feel)."











  9. LVC

    LVC
    Expand Collapse
    Fractal Fanatic

    Joined:
    Sep 20, 2009
    Messages:
    2,315
    Likes Received:
    1,370
    Location:
    Lafayette, NJ
    Yes it would have to.

    65 Bassman is not the correct circuit for what I was talking about -- the 59 Bassman is (5F6-A)!

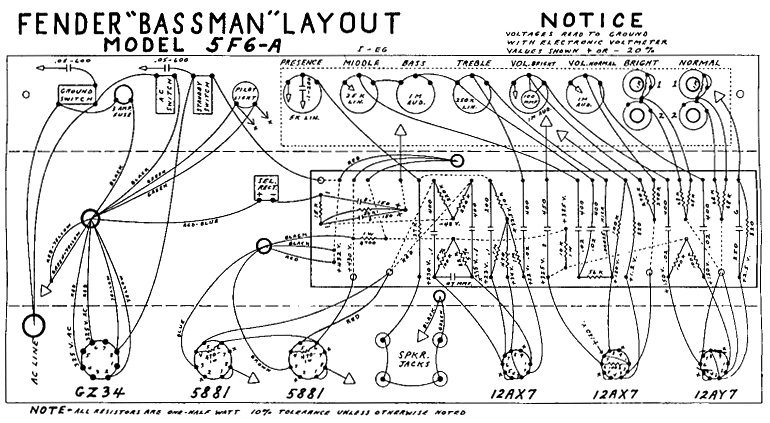

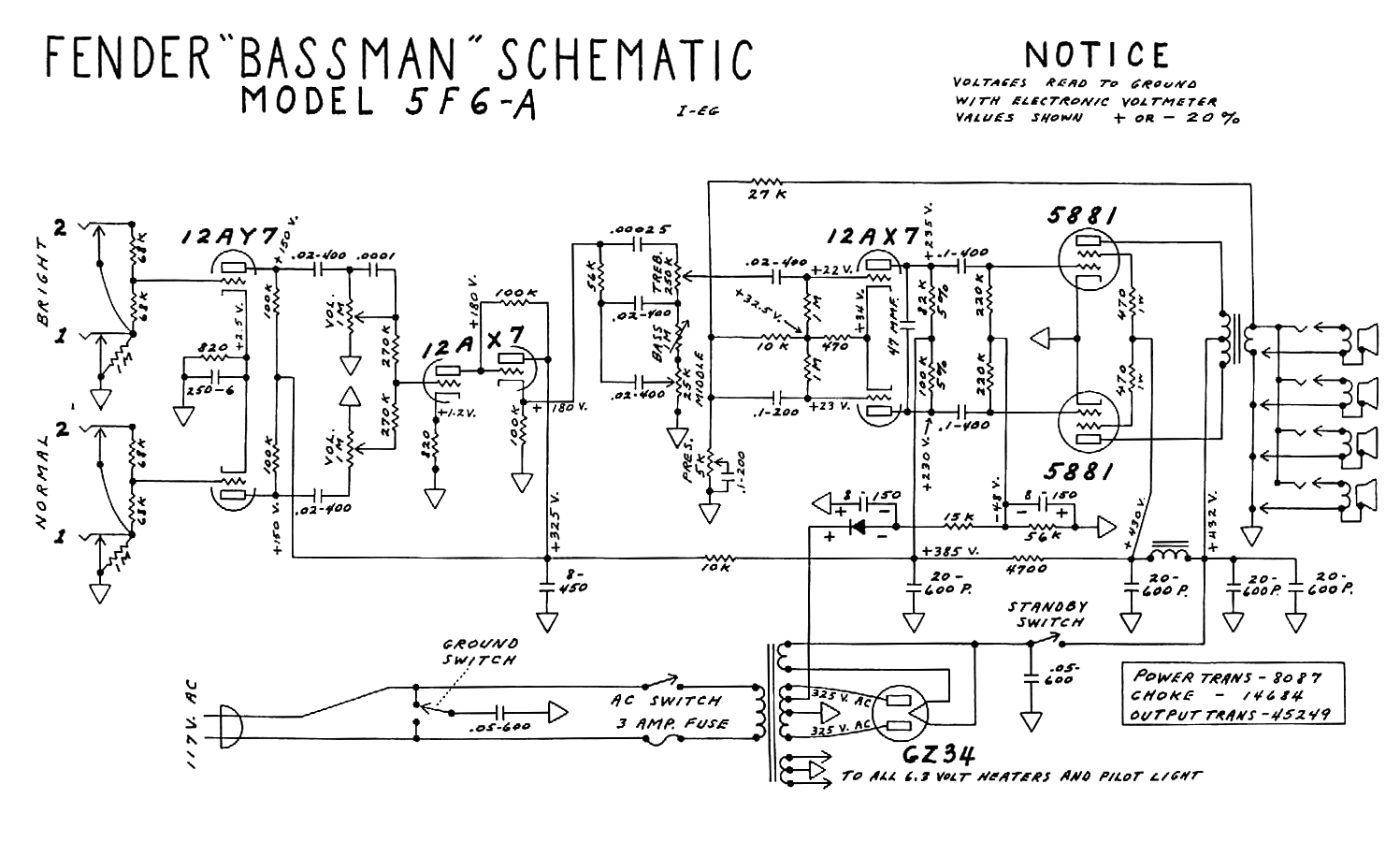

    A period correct tube layout in a 59 Bassman should have a 12AY7 preamp tube (V1). To give it a more Marshall gain - you would need another sim of the 59 but this time with a 12ax7 tube in V1. Then you would select the proper cab/speakers to go with the new gain structure.


    [​IMG]
    [​IMG]



    sorry for the confusion --- I get excited when it comes to old Fenders!

    pima1234 and tempus fugit like this.
  10. javajunkie

    javajunkie
    Expand Collapse
    Moderator
    Moderator

    Joined:
    Jul 30, 2008
    Messages:
    12,342
    Likes Received:
    3,402
    Location:
    Denver, Colorado
    Yep, I know that, my only point was that when you said the bassman sims should have 12ax7s, one of them does. Specifically the one being discussed in the first post of this thread.

  11. PacoCasanovas

    PacoCasanovas
    Expand Collapse
    Fractal Fanatic

    Joined:
    Jun 22, 2009
    Messages:
    2,487
    Likes Received:
    2,788
    as a summing stage, it's a welcome effect - normally I would cut out the resistor due of a gain bump!

    AB165 has way too much negative feedback IMO, even the power amp circuit itself had feedback resistors (I'm not talking about the normal global inverse feedback). Fender did a lot of work to convert this in a real bass amplifier, but as a guitar amplifier, cut out these 220k feedback resistors in the power amp section.
    Make sure you don't miss the balanced PI - this is also a thing you don't want in your guitar amp.....

    I love those circuits, they give you opportunities to tweak ;) - later silverface amps I love the most, these were most screwed circuits, with a little bit of love, you can make them shine again! :encouragement:

  12. #32 tempus fugit, Sep 6, 2013
    Last edited: Sep 6, 2013
    tempus fugit

    tempus fugit
    Expand Collapse
    Inspired

    Joined:
    Nov 25, 2012
    Messages:
    148
    Likes Received:
    30
    Location:
    DC
    i tried with the 4x12 basket g12h30 rw and found that quite inspiring
    edit: praise odin! i stuck a fuzz in front. pretty sure my axe fx ii became molten

    pima1234 likes this.
  13. theblogjammers

    theblogjammers
    Expand Collapse
    Veteran

    Joined:
    Jul 11, 2009
    Messages:
    563
    Likes Received:
    151
    Location:
    Minnesota USA
    I love the bassman and learning more about it--thanks Cliff.


  14. theblogjammers

    theblogjammers
    Expand Collapse
    Veteran

    Joined:
    Jul 11, 2009
    Messages:
    563
    Likes Received:
    151
    Location:
    Minnesota USA
    Ha! Me too. Fun stuff.


    LVC likes this.
  15. solo-act

    solo-act
    Expand Collapse
    Fractal Fanatic

    Joined:
    Jul 30, 2008
    Messages:
    2,307
    Likes Received:
    1,734
    Look for the the "exploding bassman" factory preset (or whatever it's called) send it into a 1x12 tweed mix and dial to taste. That's my PUSA preset. Raw, nasty, and works great for the drop D on that song. Played it at last night's gig and got out in front of the PA. Fun stuff.

  16. PJM

    PJM
    Expand Collapse
    New here

    Joined:
    Jan 27, 2013
    Messages:
    34
    Likes Received:
    5
    Just found this thread last night . SG straight out of its case ! . Thanks Yek . Could not quite get the sound i wanted from the 65 Bassman model though . What else should I try ?

  17. lqdsnddist

    lqdsnddist
    Expand Collapse
    Axe-Master

    Joined:
    May 10, 2013
    Messages:
    5,112
    Likes Received:
    5,546
    Timely bumping of this thread, I've been thinking of selling my Bassman, as I nearly always just use the Axe, but darn if the Bassman doesn't still sound a bit better to my ears. Only amp I'll actually say that about compared to the Axe.

    I'll run my Bassman (which has a PPIMV added via the second cab jack on the back) into a loadbox, and then run that line single into the Axe, using the Axe just for the IR's, and try as I might, I can't get the dial in the tone. Tried Bassman models, tried Marshall models, and everything else. They all sound really good, but the Bassman tone is just "right"

    This is in regards to the Bass channel, my AA864 clean channel has been left stock, and the Axe actually does great Fender cleans. The bass channel has the added stage of gain, and then the deep switch has been modded to kick in a bit of a mid boost. Crank the volume to about 8, treble at 9, bass at 6, and play it through my LP with hot P90's and its pure Mike Ness/Social D tone

    Music starts at the 2:15 point

    Social Distortion - Live in Orange County 2003 - YouTube

  18. Funeral

    Funeral
    Expand Collapse
    Fractal Fanatic

    Joined:
    Feb 14, 2011
    Messages:
    2,813
    Likes Received:
    1,306
    Location:
    Dallas, Tx
    Is that guy INTENTIONALLY not pronouncing his words? And singing out of tune?
    Seem about as lame as selling out...right?


    Anyways, back to the OP.
    I thought that this was common knowledge. For years Ive seen guys use Bassman amps for rock tones.

  19. lqdsnddist

    lqdsnddist
    Expand Collapse
    Axe-Master

    Joined:
    May 10, 2013
    Messages:
    5,112
    Likes Received:
    5,546

    Just how Mike Ness sings. (long live of drugs and alcohol and rock n' roll lifestyle) Awesome live guitar tone though (IMO) and great overall band with some really good songs.

    If you want someone who enunciates every word and sings in tune there are plenty of Michael Buble types or American Idol pretty boys.

  20. Funeral

    Funeral
    Expand Collapse
    Fractal Fanatic

    Joined:
    Feb 14, 2011
    Messages:
    2,813
    Likes Received:
    1,306
    Location:
    Dallas, Tx
    No thanks to all of the above. And why is it that a guy who had a "long life of drugs and alcohol" with a guitar is a musician but take away the guitar and you and I would call that same guy a looser junky?
    Also, I had to google Michael Buble, had no idea who he is. You referenced the guy and even spell his name correctly. Fan?
